Di-Acro Slip Rollers feature a cam-actuated Idler Roll which permits the forming of circles without flat spots on the leading edge of the material. The operator is also able to locate bends at any point along a sheet of material. Parts can be duplicated with a high-degree of accuracy since the Idler Roll always returns to its pre-set position.

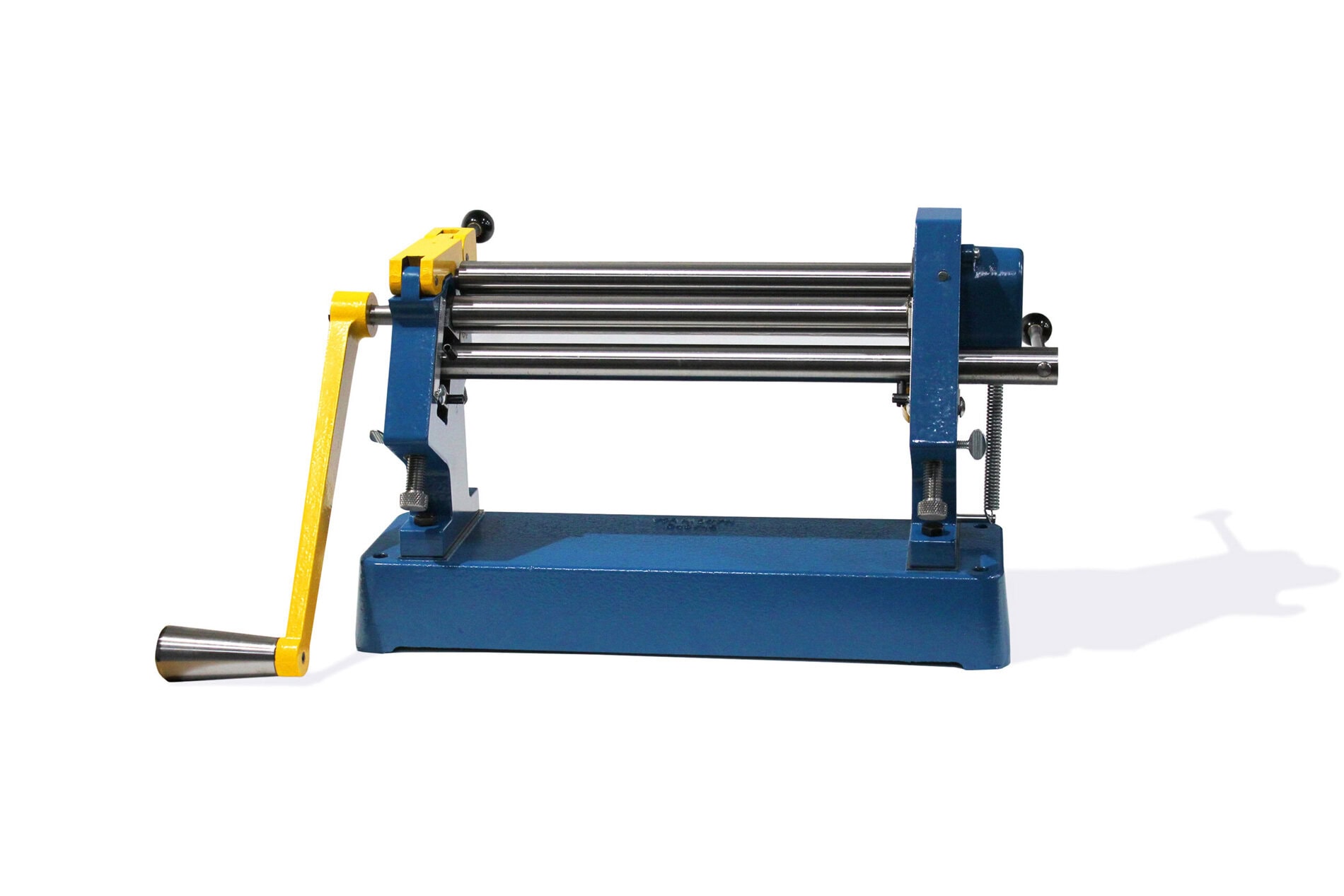

Model 2 Slip Roller
$3,965.00
- 1” diameter forming rollers
- Rear roll indicators – enable operator to adjust Idler Roll to a previous setting
- None
| MODEL 1 | MODEL 2 | |
| MAXIMUM CAPACITY – MILD STEEL* | 16 GAUGE | 22 GAUGE |
| MAXIMUM FORMING WIDTH | 6” | 12” |
| DIAMETER OF ROLLS | 1” | 1” |
| MINIMUM RADIUS | 1/2” | 1/2” |
| MAXIMUM RADIUS | NO LIMIT | NO LIMIT |
| MACHINE NET WEIGHT | 40 LBS | 51 LBS |
*Capacity is based on full forming width.
